FAT BARRIER GATE
AC / DC BARRIER GATE

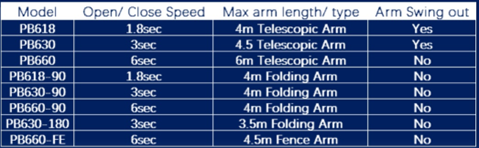

PB600 Series (AC)
PB618R/L (AC) 1.8 Sec 4m Telescopic Arm(86mm) Yes - Arm Swing Out
PB630R/L (AC) 3 Sec 4.5m Telescopic Arm(86mm) Yes - Arm Swing Out
PB660R/L (AC) 6 Sec 6m Telescopic Arm(86mm) No - Arm Swing Out
PB630-90 (AC) 3 Sec 4m Folding Arm(100mm) 90' No - Arm Swing Out
PB660-FE (AC) 6 Sec 4.5m Fence Arm No - Arm Swing Out

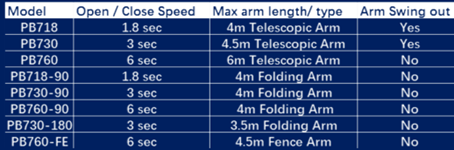

PB700 Series (DC)
PB718R/L (DC) 1.8 Sec 4m Telescopic Arm(86mm) Yes - Arm Swing Out
PB730R/L (DC) 3 Sec 4.5m Telescopic Arm(86mm) Yes - Arm Swing Out
PB760R/L (AC) 6 Sec 6m Telescopic Arm(86mm) No - Arm Swing Out
PB730-90 (DC) 3 Sec 4m Folding Arm(100mm) 90' No - Arm Swing Out
PB760-FE (DC) 6 Sec 4.5m Fence Arm No - Arm Swing Out

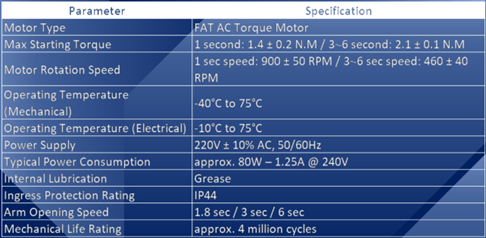

The FAT PB600 AC Barrier Gate is engineered to deliver stable performance
for everyday vehicle access control in commercial and industrial environments.
Designed with proven AC motor technology,
PB600 offers strong torque output, smooth arm motion and long mechanical lifespan
Suitable for sites that require continuous traffic flow with low maintenance cost.
AC Torque Motor Design
Consistent strength and stable lifting power for daily operation.
Balanced Spring Support
smoother movement, less vibration, longer mechanical lifespan.
Auto-Reverse Safety
barrier arm automatically reverses when obstruction is detected.
Weather Resistant Metal Housing
built to operate in Malaysia outdoor conditions.
Easy Manual Release
in power failure, arm can be unlocked by key easily from outside.
