CJ FORM-TIE WATERSTOPS

Description

CORKJOINT® CJ Form-Tie Waterstops are produced from a unique hydrophilic rubber sealing compound which expands in a controlled fashion when exposed to moisture. This forms a compression seal inside or around the form-tie system in the concrete structure, giving a permanent flexible watertight seal.

Available in a number of different sizes and profiles to suit the form-tie system. Once installed, CJ Form-Tie Waterstops forms a continuous barrier, making it ideal for preventing water penetration or egress.

Uses

Water retaining structures:

• Water Tanks

• Reservoirs

• Dams

• Water Treatment Plants

• Sewage Treatment Plants

• Swimming Pools

• Bund Walls

Water excluding structures :

• Basements

• Underground car parks

• Tunnels

• Stations & Subways

• Retaining Walls

• Pits & Manholes

Advantages

• Excellent sealing capabilities and available in many different sizes, shapes and profiles to suit the formwork form-tie system to be used. Custom profiles available upon request.

• Provides a permanent, flexible gasket and compression seal inside the concrete.

• High quality, non-biodegradable compounded hydrophilic rubber that provides long-term durability and integrity.

• Ability to expand up to 200% in contact with potable water and over 150% expansion in salt water. Has been tested to withstand over 50 metres of hydrostatic water head pressure. (Test report available upon request)

• For use in many different types of applications but especially suited for water retaining structures where direct water pressure is applied against the concrete and the form-tie system.

• Non-toxic and can be used in potable water structures.

• Unaffected by repeated wet and dry cycles.

• Fast and simple to install.

• Expansion is controlled via the built-in expansion delay system. The product does not pre-expand from the water in the freshly laid concrete of the wall, allowing the concrete to gain strength first.

Applications

Colour

• Rubber for plugs: Blue

• Rubber for rings: Black

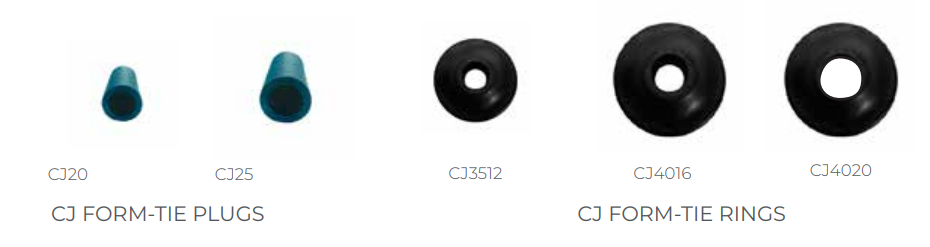

Profile Selection

*O.D.: Outer Diameter
*I.D.: Inner Diameter
*L: Length
