Product Description

The JLUX M686-2 M20 PVC 2-Way Terminal Junction Box Connector 24A 450V IP68 is a professional-grade solution designed for secure, waterproof electrical connections in demanding environments. Ideal for lighting and electrical installations, this connector ensures safe power distribution while protecting cables from water, dust, and environmental damage.

Built from high-quality PVC material, the JLUX M686-2 offers excellent insulation, durability, and corrosion resistance. With a 24A current rating and 450V voltage capacity, it is suitable for a wide range of residential, commercial, and industrial applications.

This 2-way terminal junction box connector features an M20 cable entry and is available in two variants:

• M686-2A: Supports cable diameter 4–8mm

• M686-2B: Supports cable diameter 6–11mm

Its IP68 waterproof rating makes it ideal for outdoor installations, wet locations, and harsh environments where reliability and safety are critical.

   Key Features & Benefits:

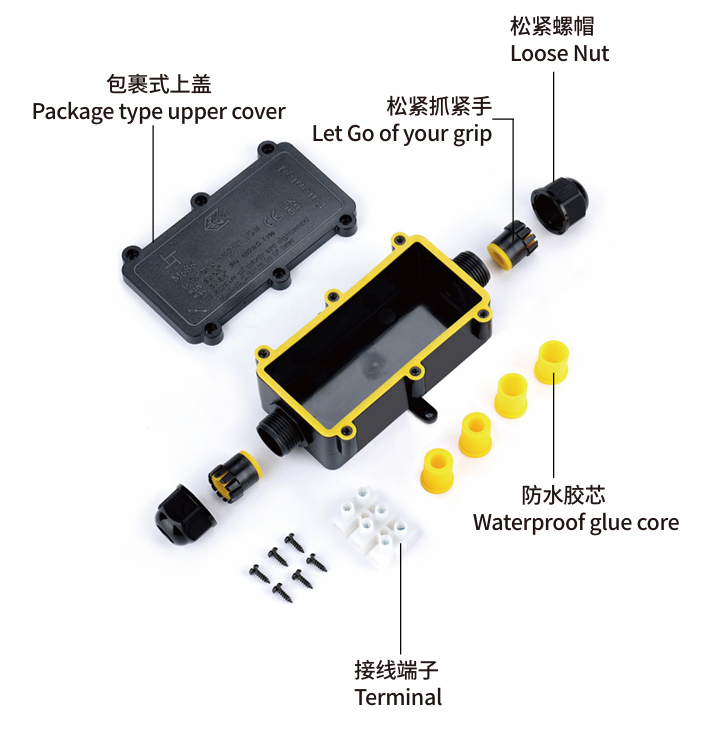

• 2-Way Terminal Design: Clean and secure cable connections

• High Electrical Rating: Supports up to 24A / 450V

• IP68 Waterproof & Dustproof: Suitable for outdoor and wet environments

• Durable PVC Construction: Strong insulation and long service life

• M20 Cable Entry: Flexible fit for 4–8mm & 6–11mm cable sizes

• Easy Installation: Ideal for electricians, contractors, and lighting installers

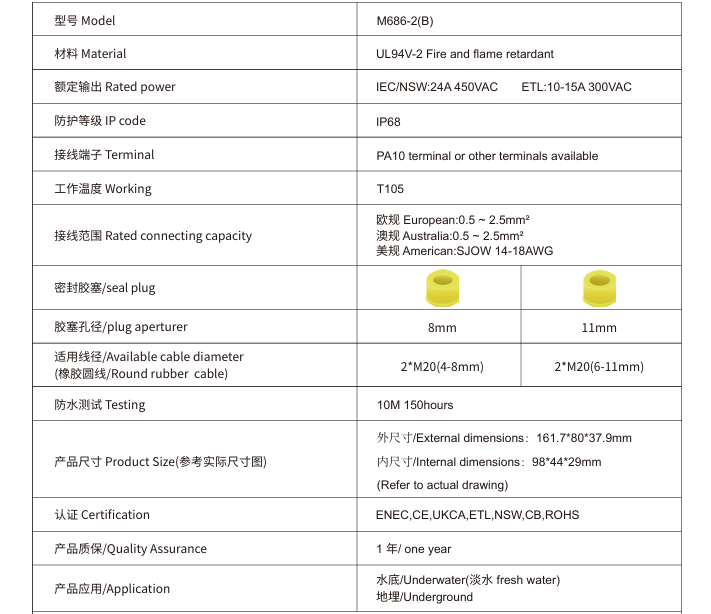

  Product Specifications:

• Product Name: JLUX M686-2 PVC 2-Way Terminal Junction Box Connector

• Brand: JLUX

• Category: Waterproof Junction Box

• Model Variants: M686-2A / M686-2B

• Current Rating: 24A

• Voltage Rating: 450V

• Material: PVC

• Thread Size: M20

• Cable Diameter Range: 4–8mm / 6–11mm

• IP Rating: IP68

   Ideal Applications:

• Waterproof junction box installations

• Indoor & outdoor lighting systems

• Electrical wiring and cable management

• Commercial, residential & industrial projects

The JLUX M686-2 M20 2-Way Waterproof Junction Box Connector is a reliable choice for installers seeking long-lasting performance, safety, and weatherproof protection at an excellent value.
