Description
Model: i18s
FANVIL INDUSTRY GRADE SIP Video Intercom

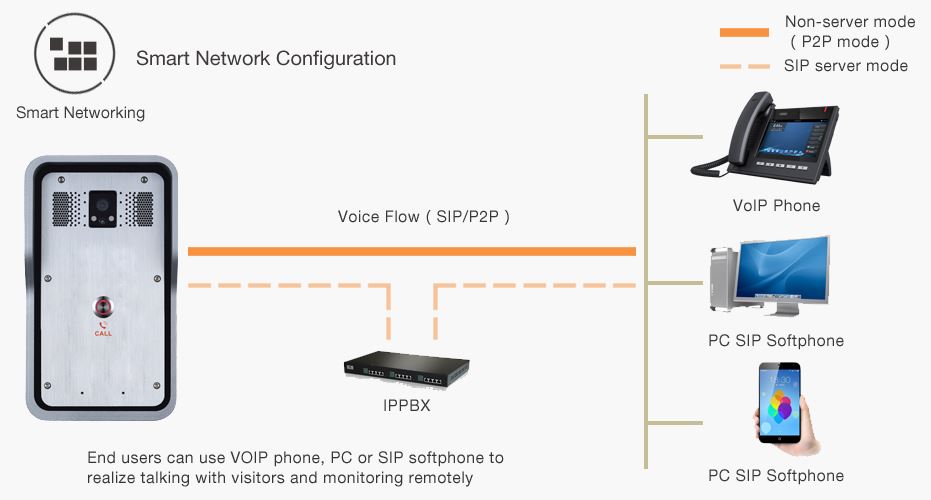

This SIP intercom model is produced for industrial users, developing based on technology of VOIP, using standard IP/RTP protocol, compatible with many popular SIP PBX, /IMS platform, such as Asterisk, Broadsoft, 3CX, Elastix etc., easily to deploy.
The i18S SIP Video Intercom is designed for outdoor scenes with high reliability, HQ Audio/Video, and IP65/IK10 protection grade. It combines security, audio/video intercom and broadcasting functionalities and offer the best communication solution for users
Key Features
-
Concise design and easy installation(support wall mounted and Flush-Mounting)
-
HD camera with night vision; supports HD video communication
-
-
Telecom grade HD audio with built-in 3W speaker and AEC; adapt for noisy environment
-
Functionality including security, intercom and broadcasting
-
Support wide working temperature range from -40 to +70 °C
-
IP65 and IK1

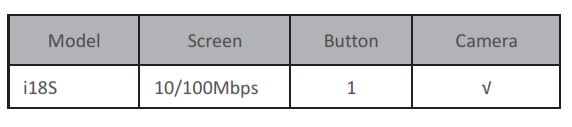

Technical Specifications
Access control function
-
Two SIP lines, support SIP 2.0(RFC3261)and related RFC
-
POE Enabled
-
Full-duplex handsfree(HF)
-
Default Auto Answer
-
Support electric lock internal or external power supply options
-
Support customized DSS keys
-
Network Time Synchronization
-
Action URL/Active URI remote control
Audio
-
Narrowband speech codec: G711a/u, G723. 1. G.726-32K, G. 729AB
-
Broadband speech codec: G. 722
-
Full Duplex Echo Cancellation (AEC)-96MS tail-length
-
DTMF: In-band, out-of-band DTMF(RFC2833)/SIP Info
Networking/Protocols
-
Support POE
-
Primary and secondary DNS servers are supported
-
Support RTSP
-
Support SNTP client
-
Support VPN L2TP/ OpenVPN
-
Support SRTP
-
Support HTTP/HTTPS web pages
-
Support Qos: 802. 1p/q, DSCP
-
Support MD5 authentication
-
Support Web Filter
-
DHCP/static/PPPOE
-
Support STUN
Video
-
Sensor: 1/2.7” color CMOS
-
2 Megapixels
-
Video codec: H.264
-
Resolution: main stream 1280×720@25fps
-
Sub-stream 704×576(D1)@25fps
-
Viewing angle: 112° (H), 84° (V)
-
Minimum illumination: 0.1Lux, support for infrared illumination
Physical Specifications
-
1 or 2 DSS keys (Speed Dial)
-
RJ45 Ethernet Jacket x2: Network x1, PC x1 (Bridged to Network)
-
Main Chipset: Broadcom
-
Passive Switch: Normally Open and Normally Closed highest at
-
30V/1A AC/DC
-
Output interface for active speaker
-
Audio record output interface
-
2 embedded short circuit input interfaces
-
2 embedded short circuit output interfaces
-
Speaker: 3W/4Ω
-
1 DSS button(speed dial button
-
1 embedded short circuit input interface
-
1 relay: MAX DC30V/1A, AC125V/0.5A
-
Active switching output: 12V/650MA DC
-
Microphone: -38db
-
Speaker: 40/3W
-
WAN port: RJ-45, 10/100M adaptive
-
Power supply: 12V t 15%/1A DC or POE
-
Network cable: CAT5 or better
-
Shell material: Aluminum Cover and Cast-aluminum back case
-
Installation method: Wall-mounting or Flush-mounting
-
Storage Temperature:-40-70'c
-
Working Temperature: -40-70'c
-
Working humidity: 10-90%0
-
Protection level: IP65 and IK10
-
Working Humidity: 10~90%
-
Overall Dimension: 223x130x74mm (W x H x L)
-
Package Dimensions: 310x175x115mm (W x H x L)
-
Package Weight: 1800g
